ACS - Automated Cutting System

ACS
Automated Cutting System

This hands off approach to foam fabricating allows for more predictable throughput and better cost controls. Our goal is to improve profit per capital by allowing more productivity without adding personnel

  • Overview
  • Standard Features
  • Optional Features
  • Technical Specifications
  • Floor Space Required

Overview

This hands off approach to foam fabricating allows for more predictable throughput and better cost controls. Our goal is to improve profit per capital by allowing more productivity without adding personnel.

Common Applications

Furniture, Packaging, Automotive, Medical

Commonly Processed Materials

PUR soft foam, HR foam, viscoelastic foam, latex, rebond foam, Basotect®, PE

Download Brochure

ACS Specifications [Downloadable PDF][Opens in New Window]

  • HTX 51-88 VBA Horizontal Slitter

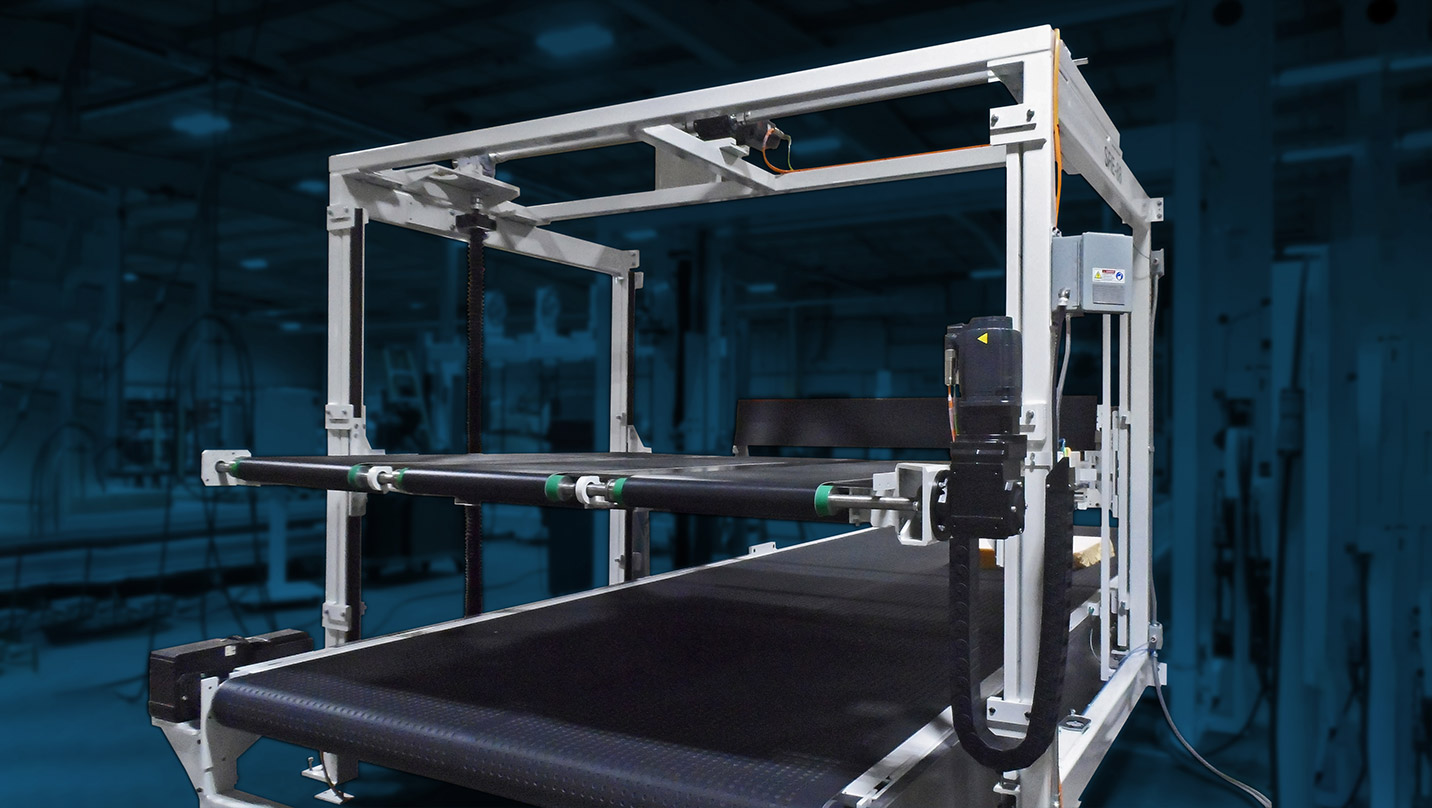

  • SRE-88 Sheet Removal Elevator
  • VPX 50-88 Vertical CNC Blade Contour Saw

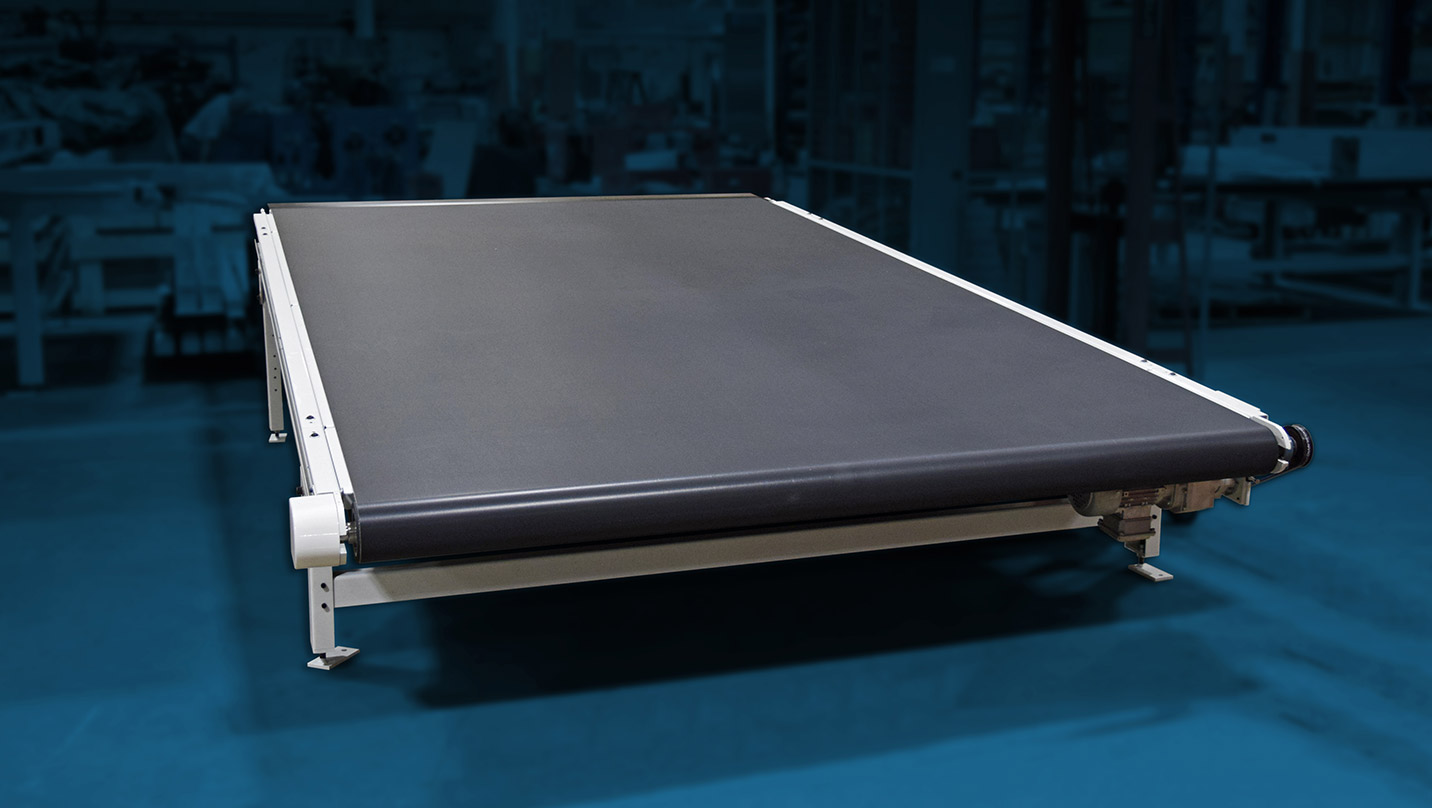

  • Scissor Lift Conveyor
  • Staging Conveyor
  • Unload Conveyor
  • Conveyor Trolley for adding additional machinery to cutting line

Operator Controls

  • PLC Control with PC Interface
  • Controls mounted on a freestanding pedestal
Specifications
MODELS HTX 51-88 VBA VPX 50-88
Cutting Height 51 IN [1295 MM] 36 IN [914 MM]
Cutting Width 88 IN [2235 MM] 61 IN [1549 MM]
Cutting Length 132 IN [3350 MM] 219 IN [2768 MM]
Floor Space Required
Overall Width 160 IN [4064 MM] 143 IN [3632 MM]
Overall Length 324 IN [8230 MM] 219 IN [2768 MM]
Maximum Height 155 IN [3937 MM] 109 IN [2768 MM]
