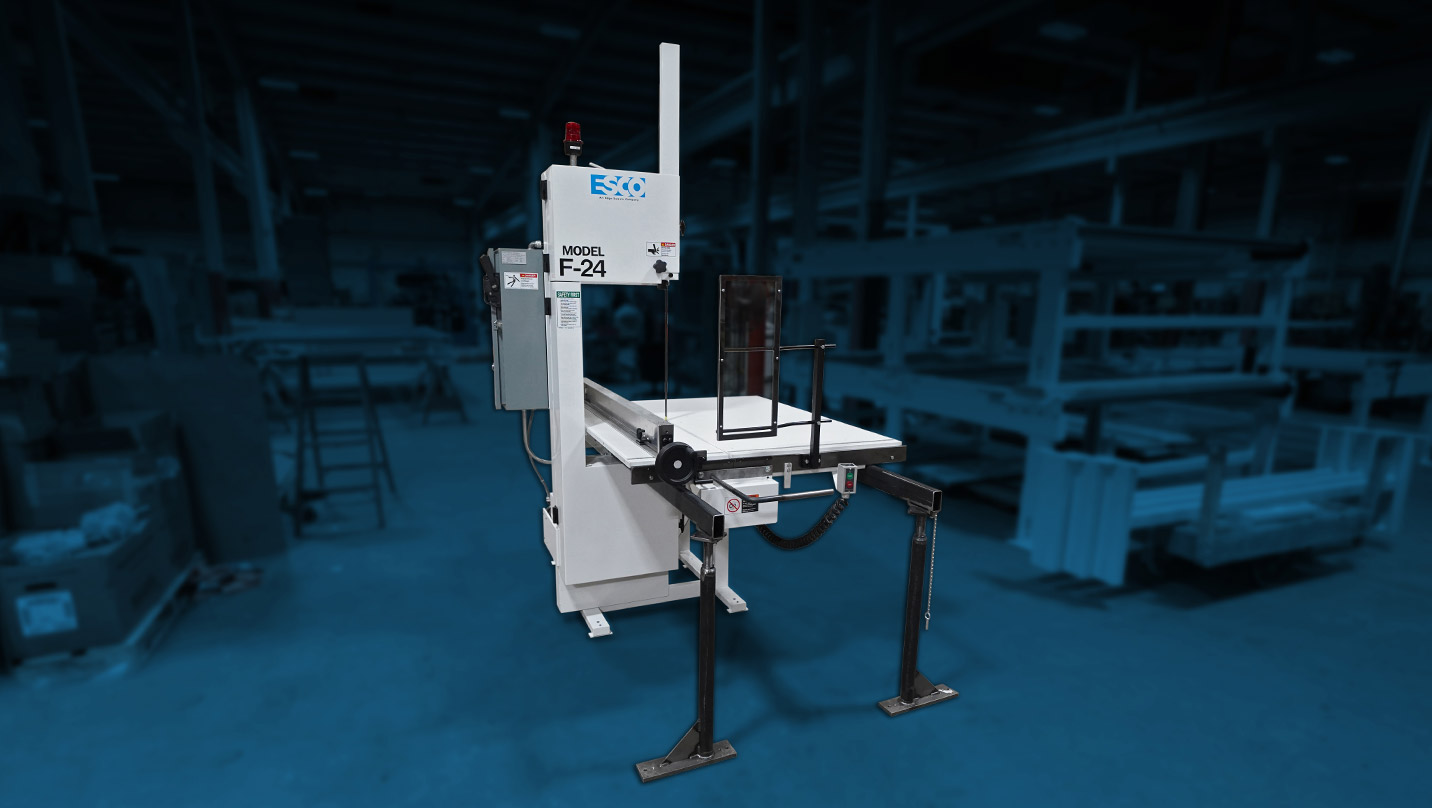

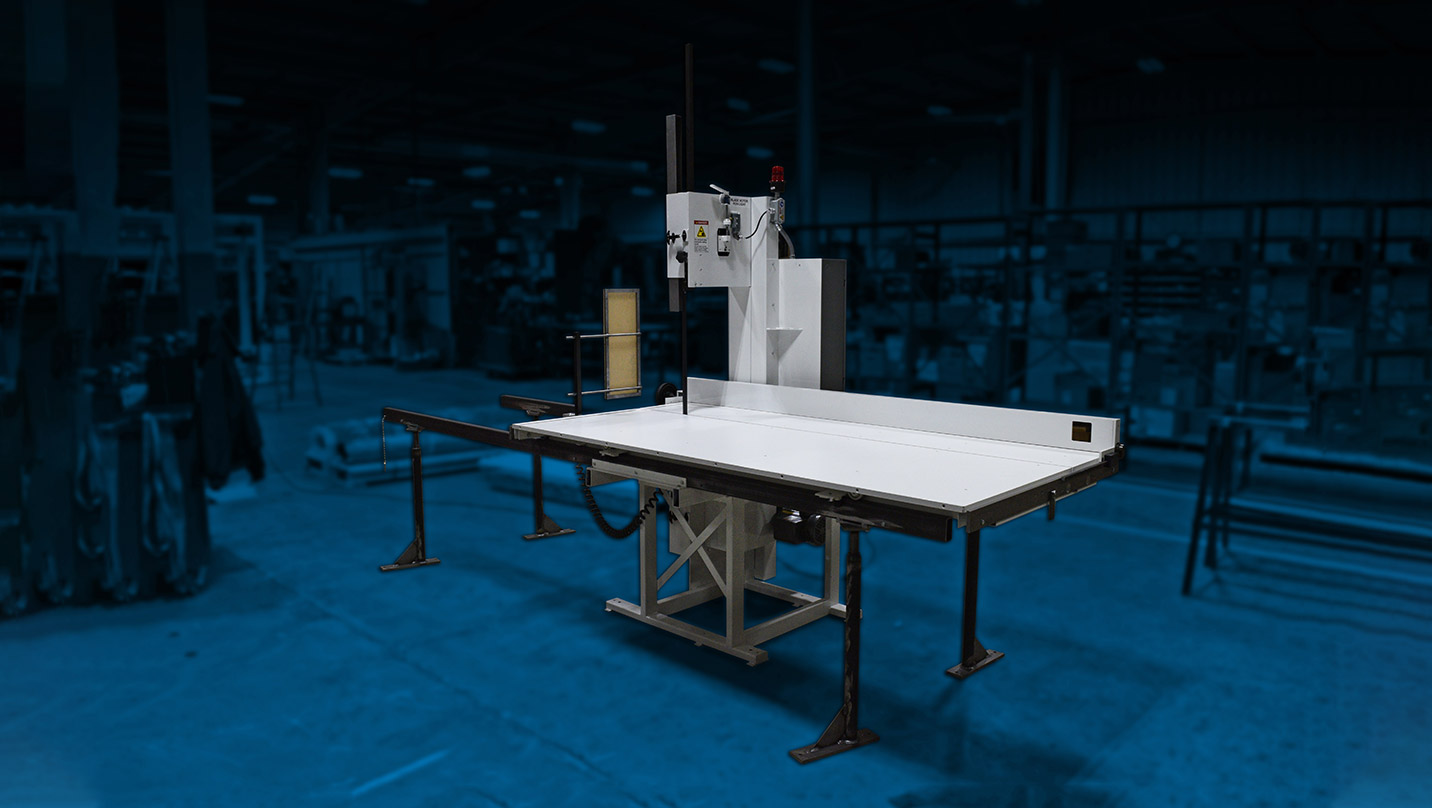

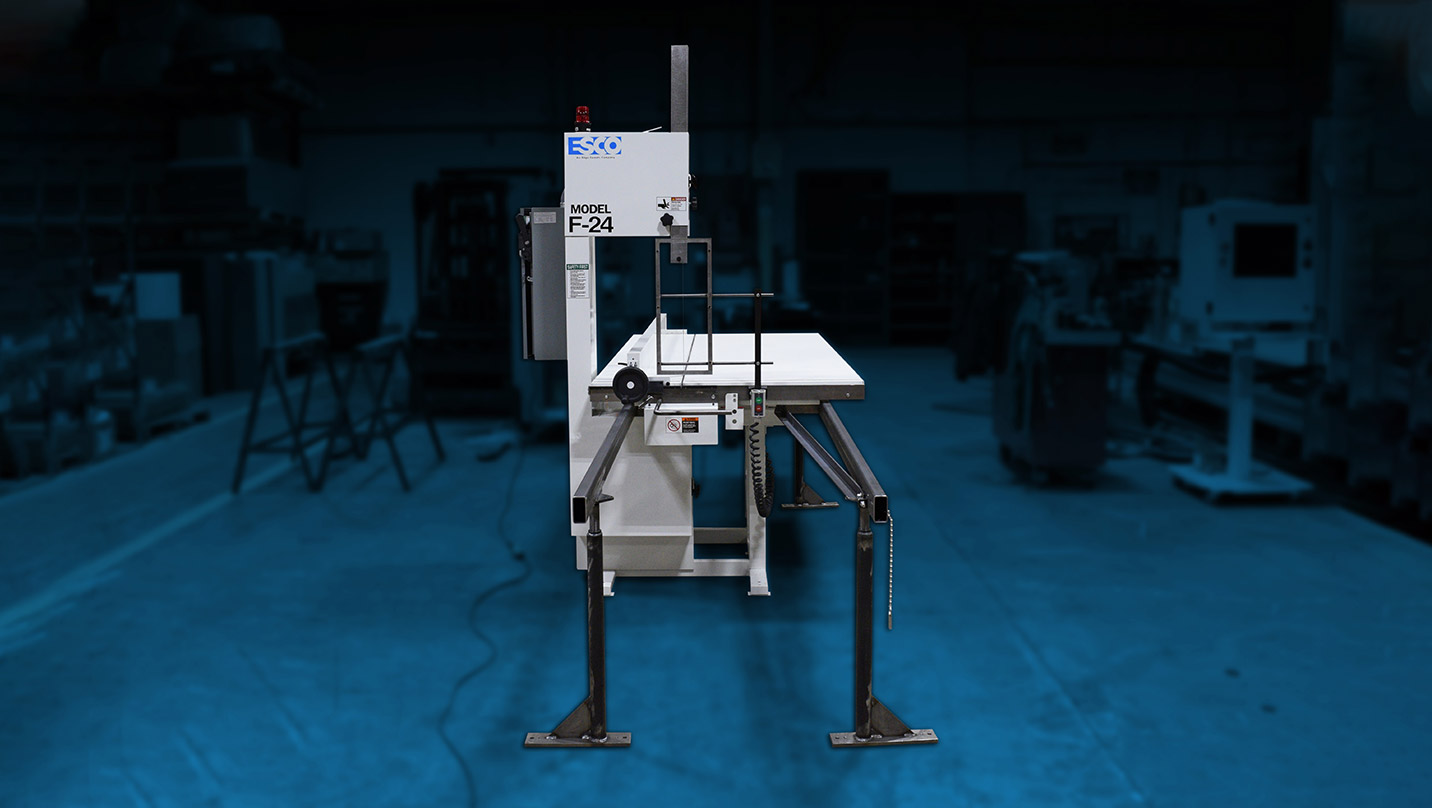

F-24 - Manual Vertical Band Saw

F-24
Manual Vertical Band Saw

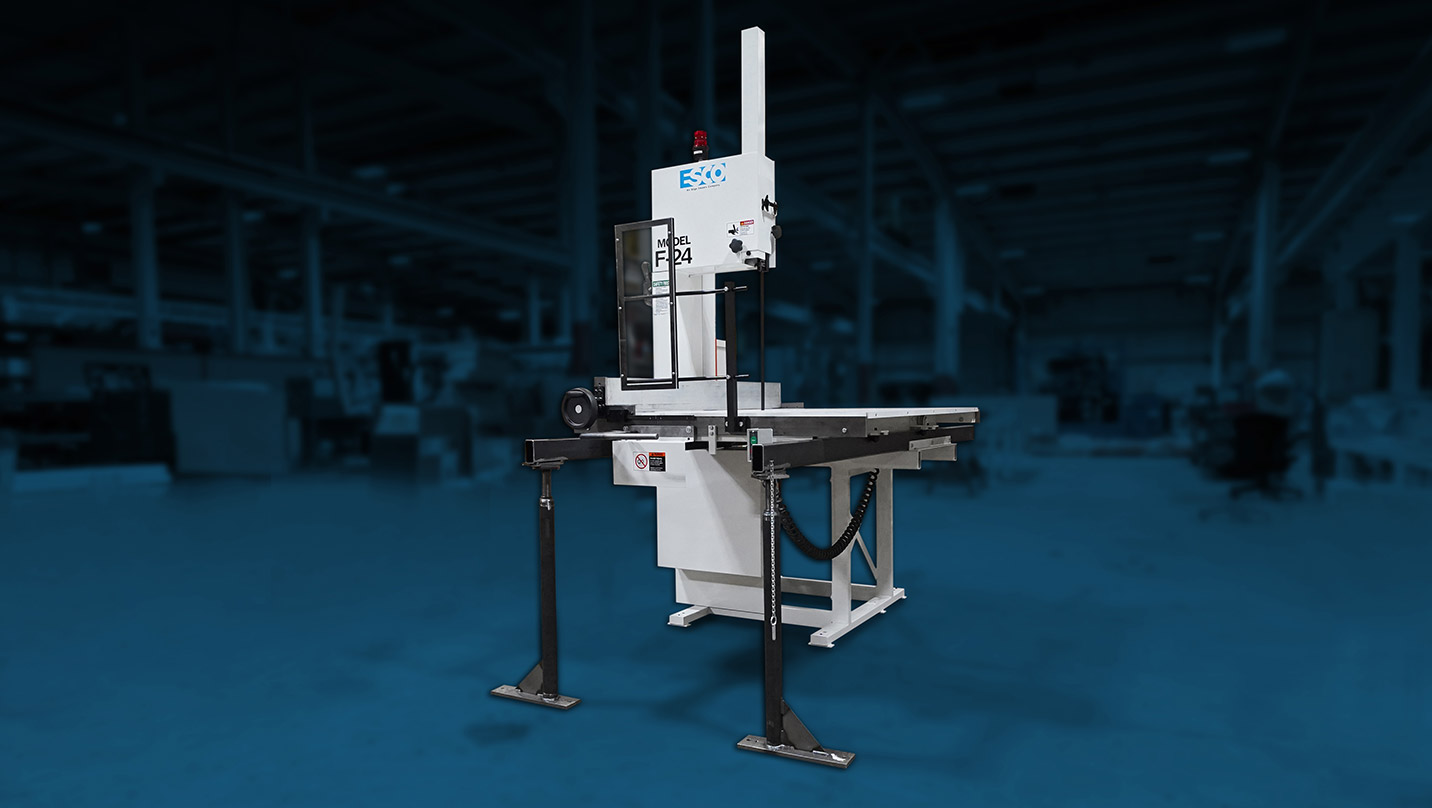

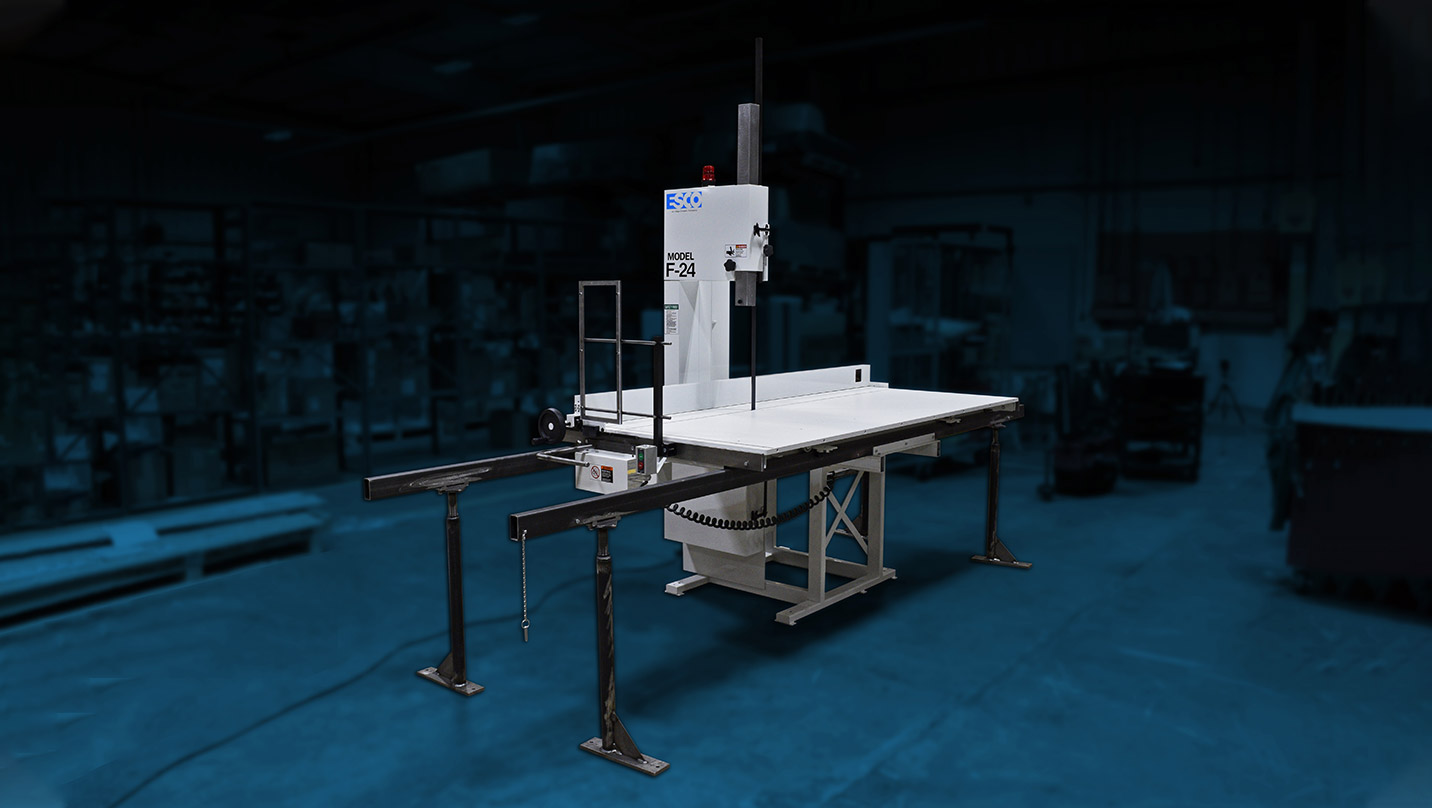

The F-24 is a vertical band saw small enough to be used in a laboratory type environment yet robust enough for use as a production machine.

  • Overview
  • Standard Features
  • Optional Features
  • Technical Specifications
  • Floor Space Required

LEGACY MACHINE

Legacy machinery is not available for quotation.

Edge-Sweets is currently modernizing our legacy machines utilizing state-of-the-art manufacturing processes to offer high-quality, modern machines at a competitive price. Your sales engineer will have more information when legacy machines will be available for quotation again.

Overview

The F-24 is a vertical band saw small enough to be used in a laboratory type environment yet robust enough for use as a production machine.

Common Applications

Upholstery, bedding, furniture, packaging, automotive, medical

Commonly Processed Materials

PUR soft foam, PUR rebond foam, viscoelastic, latex and similar flexible foams

Download Brochure

F-24 Specifications [Downloadable PDF][Opens in New Window]

  • Plastic coated wood top cutting table

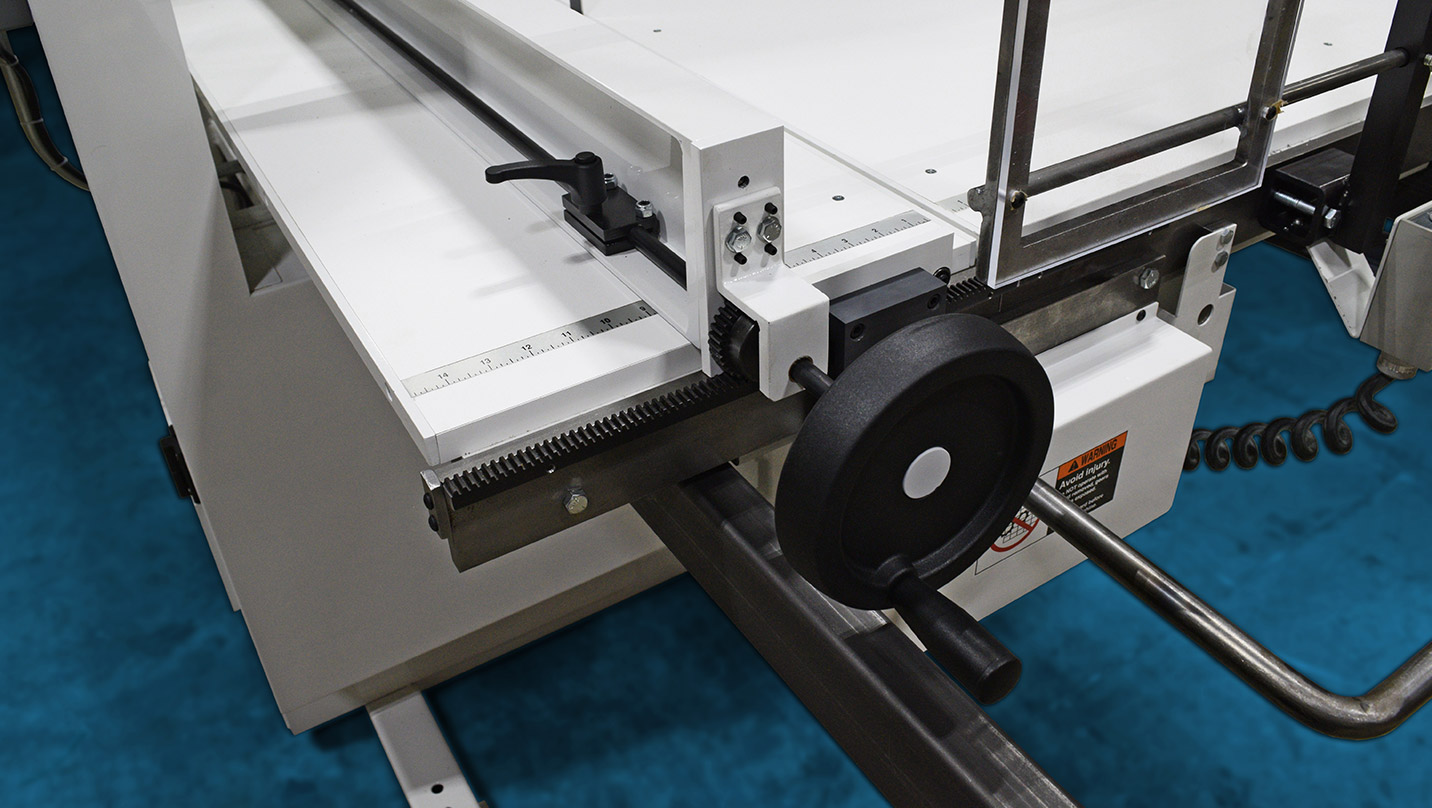

  • Manually operated side fence with lock

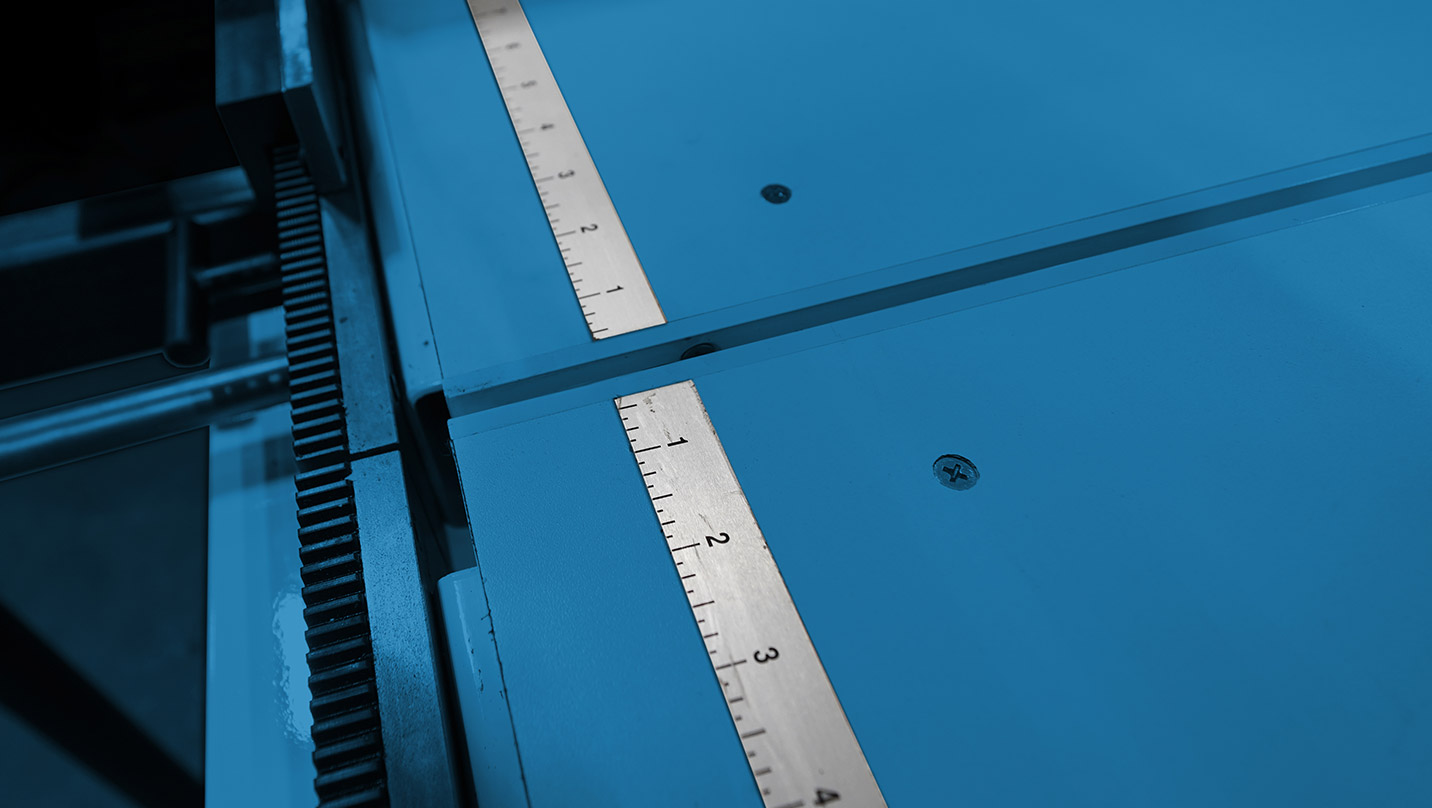

  • Embedded position rulers in cutting table
  • Operator controls mounted to cutting table

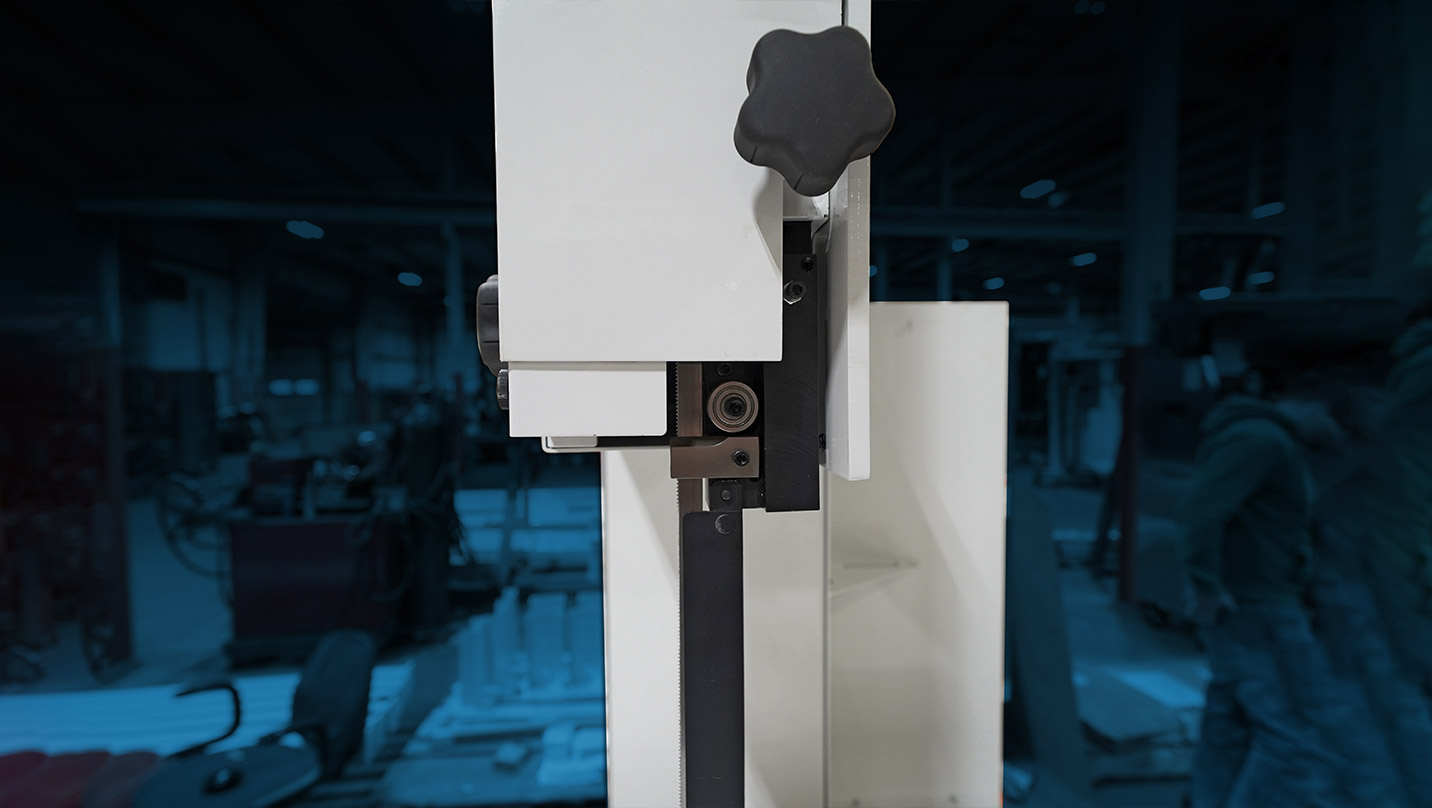

  • Heavy-duty industrial blade guide
  • 24 IN [610 MM] Or 48 IN [1219 MM] Table Side Extension
  • 16 IN [406 MM], 24 IN [610 MM], 36 IN [914 MM] Fence Height Extensions
  • Carter Roller Blade Guide Assembly
  • Two-Way Cut Assembly
  • Powered Upper Guide/Guard Assembly
  • Blade Sharpener + Dust Collector
  • 5 HP Blade Motor
  • Variable Speed Blade Motor
  • Aluminum Table Top
  • Pneumatic Assist Table-Drive
  • Increase Table Height From 31 IN [787 MM] To 37 IN [940 MM]
  • Right-Hand Option

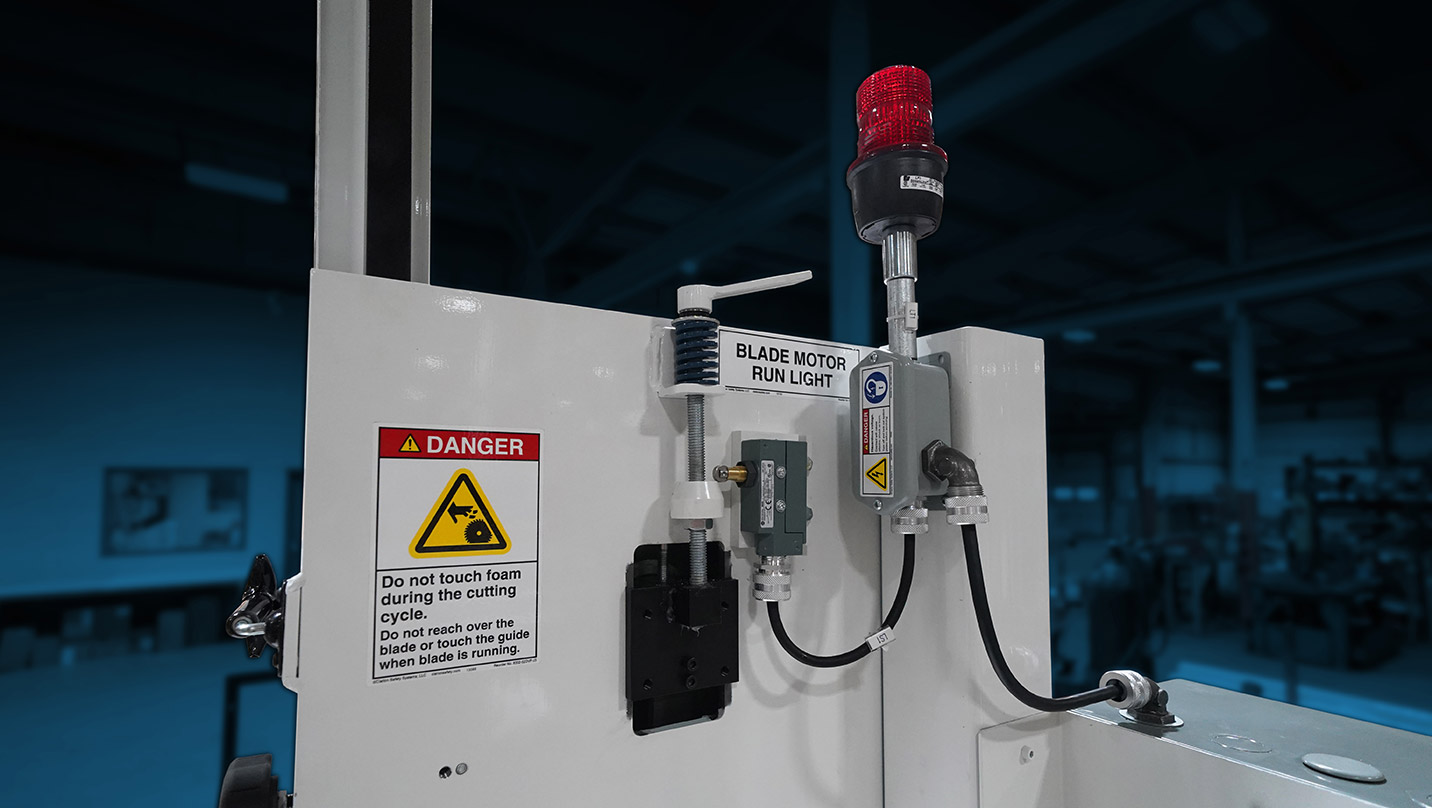

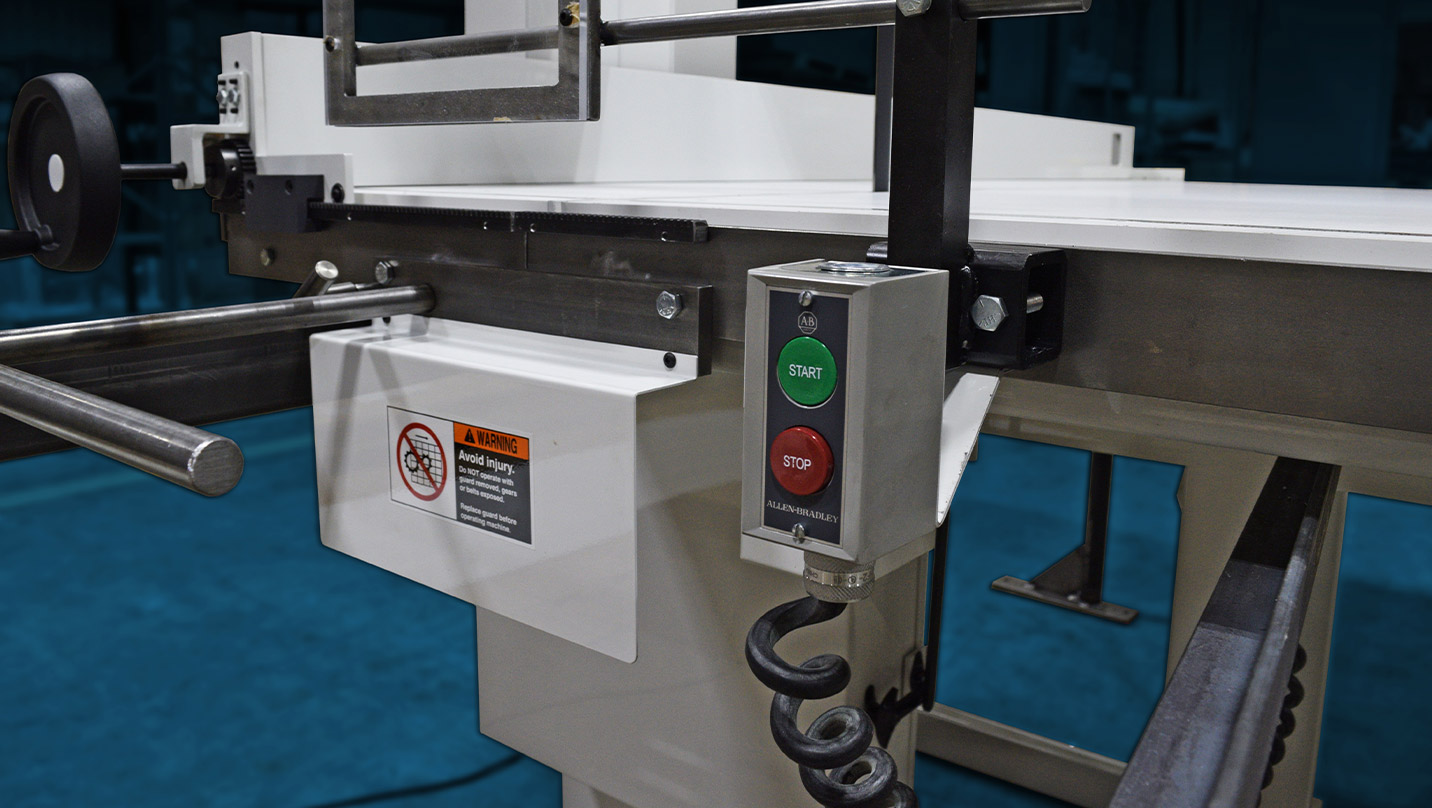

Operator Controls

  • Push-button controls moounted to table assembly
  • Manually operated side-fence with lock
  • Pneumatic Table-Assist Control Feature [Optional]

Head Assembly

  • Manual Upper Guide/Guard Assembly [Standard]
  • Powered Upper Guide/Guard Assembly [Optional]
  • Manually Operated Side-Fence With Lock

Table Assembly

  • Table Height : 31 IN [787 MM][Standard]
  • Top Surface : Sealed novaply with smooth surface
  • Side Fence : 5 IN [127 MM] Tall aluminium with position lock
  • Fence Rulers : Embedded in table [Both Sides]
  • Table Lengths : 7 FT [1234 MM], 9 FT [2743 MM] Or 11 FT [3353 MM]

Blade Assembly

  • Blade Thickness : 0.02 IN [0.5 MM]
  • Blade Width : 0.375 IN, 0.5 IN, 0.75 IN
  • Blade Type : Serrated Saber Tooth
  • Blade Guide : Teflon Coated [Standard]
  • Blade Motor : 1.5 or 2 HP Pulley Drive
  • Blade Speed : 3100-3200 FPM [945-975 M/MIN]

Power Requirements

  • 240/480VAC 3-Phase [Standard]
  • 120/240VAC 1-Phase [Optional]
Specifications
Cutting Width - Inside 13 IN [330 MM]
Cutting Width - Outside 30 IN [762 MM]
Cutting Height 24 IN [610 MM]
Cutting Length Of Table 4 FT [1219 MM], 5 FT [1524 MM], 7 FT [2134 MM], 9 FT [2743 MM]
Floor Space Required
Overall Width 50 IN [1270 MM]
Overall Length 150 IN [3810 MM]
Maximum Height 95 IN [2413 MM]
F-3W - Lab-Scale Manual Vertical

Lab-Scale Manual Vertical

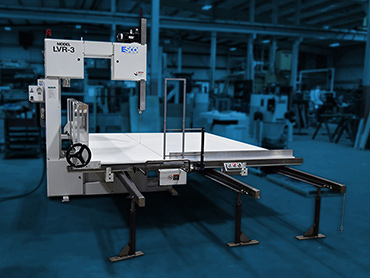

LVR - Manual Vertical
