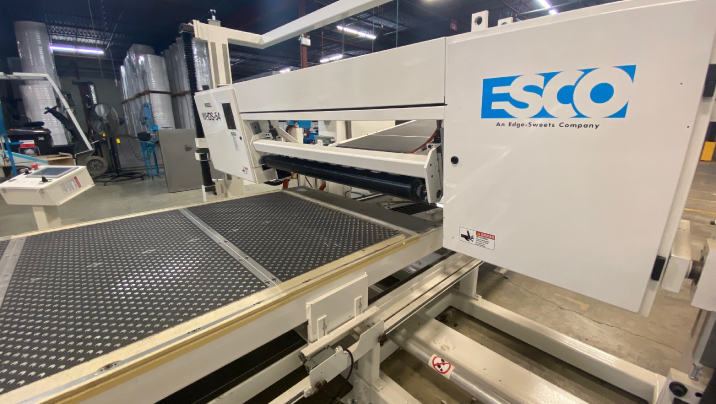

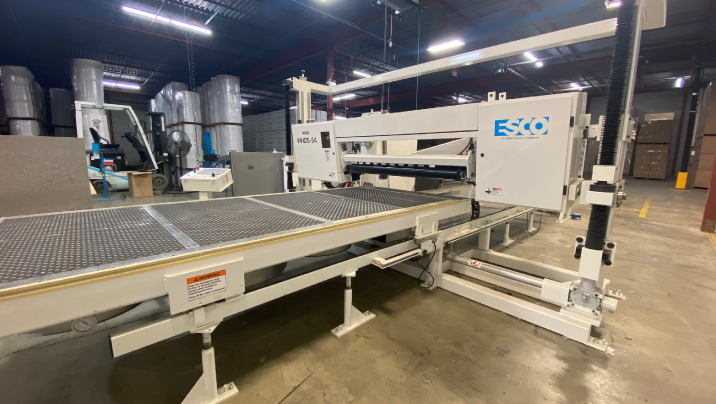

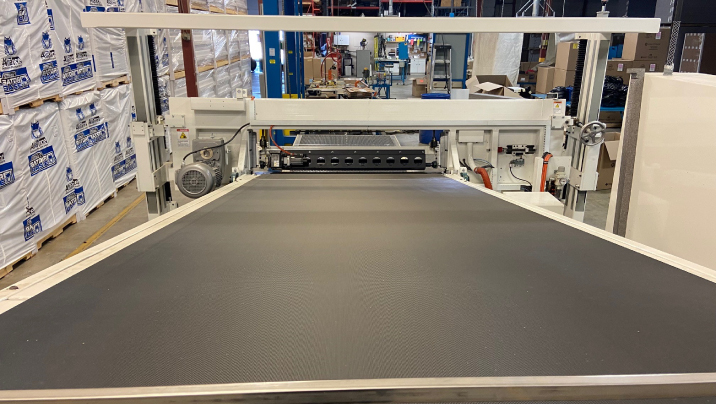

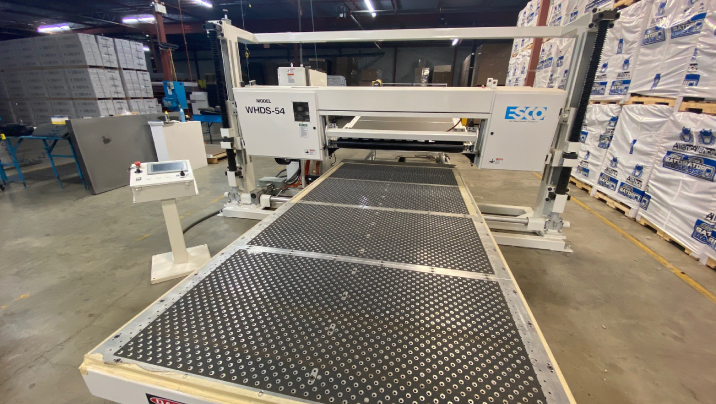

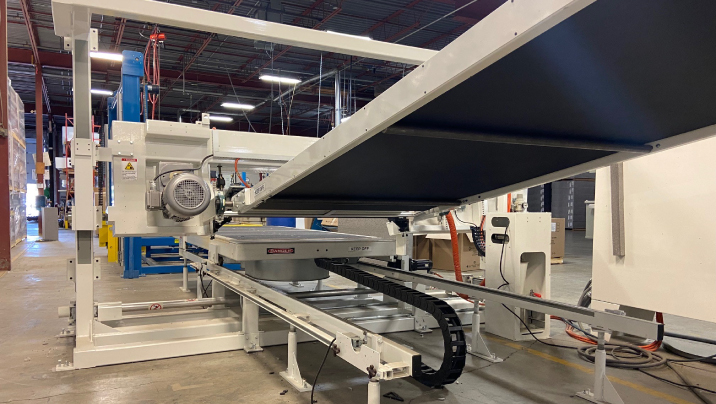

WHDS-54
MEDIUM-DENSITY HORIZONTAL SLITTER

The ESCO Model WHDS-54 Rigid High-Density Horizontal Foam Saw is a two-wheel splitter designed to cut low to medium density rigid materials up to 6 lbs per cubic foot [96 kg per cubic meter] and up to 30" [762 MM] high, 54" [1372 MM] wide and 9' [2743 MM] long. Optional cutting width of 62” [1575 MM] available.

Next Picture

  • GENERAL INFORMATION
  • INCLUDED FEATURES
  • TECHNICAL SPECIFICATIONS

DESCRIPTION

The WHDS-54 is a two wheel splitter for low to medium density rigid materials. Designed to cut rigid urethanes and other similar materials up to 6 lbs/ft3 (96 kg/m3) densities.

E-5185 comes equipped with a servo-powered roller hold-down, blade sharpening system and takeaway conveyor.

CONDITION

LOCATION

Quebec, CANADA

PRICE

CONTACT

  • Blade Sharpening System

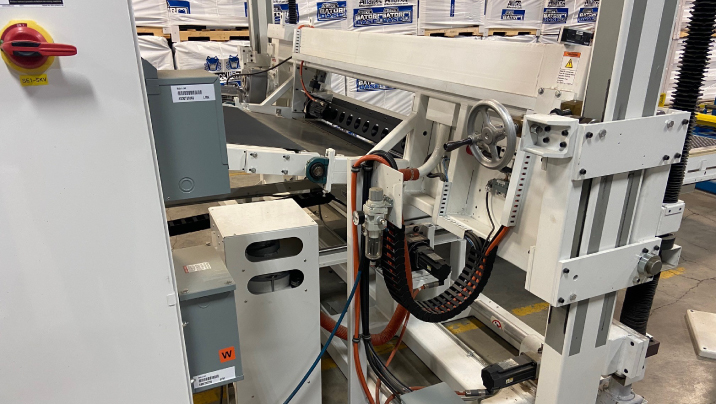

  • Servo-Powered Roller Hold-Down
  • 4-Zone Vacuum Hold-Down on Cutting Table

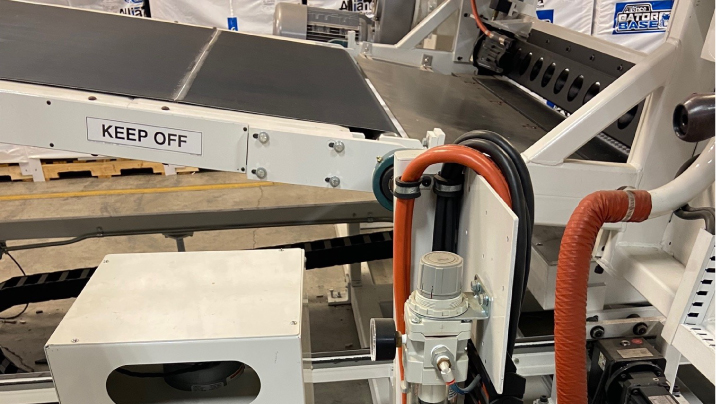

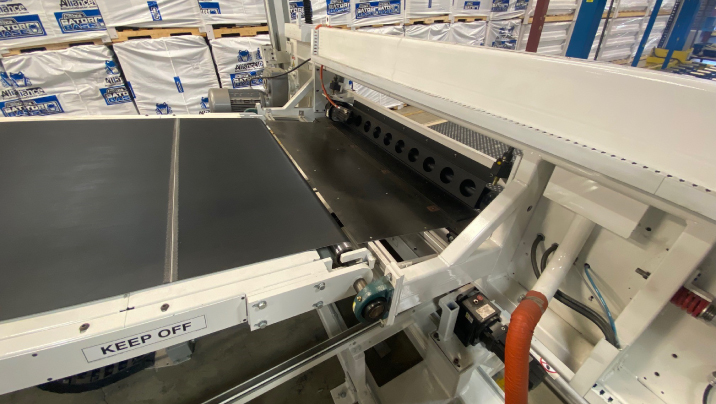

  • Takeaway Conveyor System
  • CUTTING WIDTH : 54 IN [1372 MM]
  • CUTTING HEIGHT : 30 IN [762 MM]
  • CUTTING LENGTH : 108 IN [2743 MM]
  • CUTTING SPEED : Variable Speed Blade Drive
  • OVERALL MACHINE WIDTH : 145 IN [3683 MM] (Stock Machine Dimensions)
  • OVERALL MACHINE HEIGHT : 120 IN [3048 MM] (Stock Machine Dimensions)
  • OVERALL MACHINE LENGTH : 246 IN [6248 MM] (Stock Machine Dimensions)
  • BLADE : 1.5 IN x .032 IN x 21 FT 5 IN
  • POWER : 480/3/60
