RSS-60
60in Roll Stock Splitter

A rugged unit designed to split flexible and rigid products where thin sheets from slab material are required.

Next Picture

  • GENERAL INFORMATION
  • INCLUDED FEATURES
  • TECHNICAL SPECIFICATIONS

DESCRIPTION

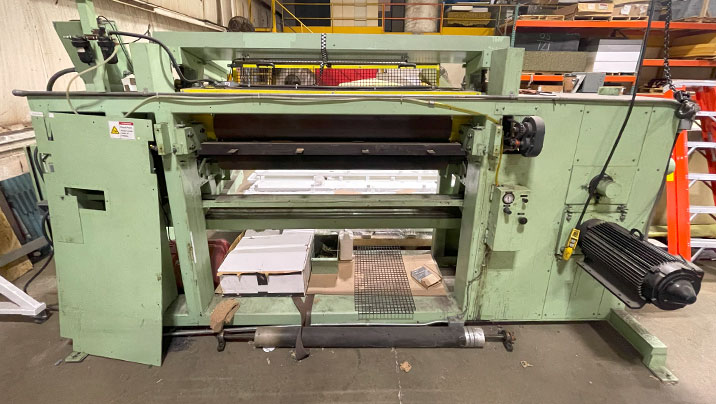

The Model RSS-60 roll splitter is a rugged unit designed to split flexible and rigid products where thin sheets from slab material are required.

E-4162 Built in 2007 with only Skiving Rollers. The original customer made some modifications on their own; Blade Start Alarm, Safety Guards, Etc...

CONDITION

LOCATION

West Michigan, USA

PRICE

CONTACT

  • Pneumatic Blade Sharpener
  • Roll Stock Pulley Assembly

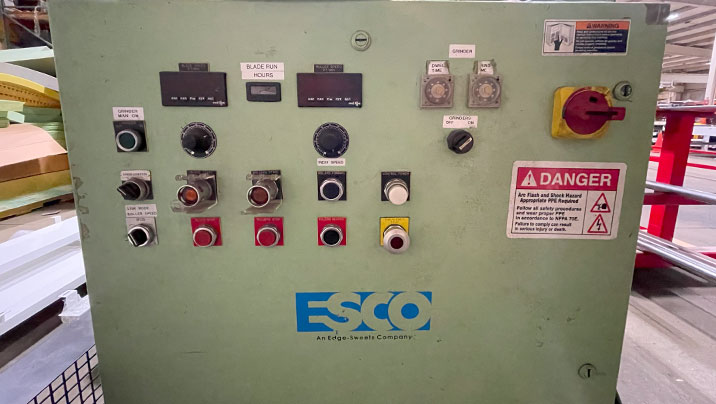

  • Relay Controls

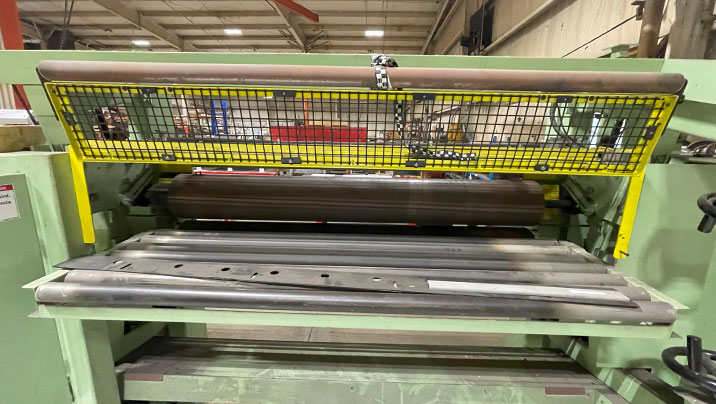

  • Aftermarket Safety Guarding
  • Blade Start Alarm
  • Manual Blade Tension
  • Manual Roller Adjustments
  • CUTTING WIDTH : 60IN
  • CUTTING HEIGHT : 6IN MAX
  • CUTTING LENGTH : N/A
  • CUTTING SPEED : 5-27 M/MIN
  • OVERALL MACHINE WIDTH : 187IN
  • OVERALL MACHINE HEIGHT : 83IN
  • OVERALL MACHINE DEPTH : 69IN
  • BLADE : 1.5IN Width X 24FT 10IN Length
  • POWER : 460/3P/60
